ELFB Series

EL Series logo

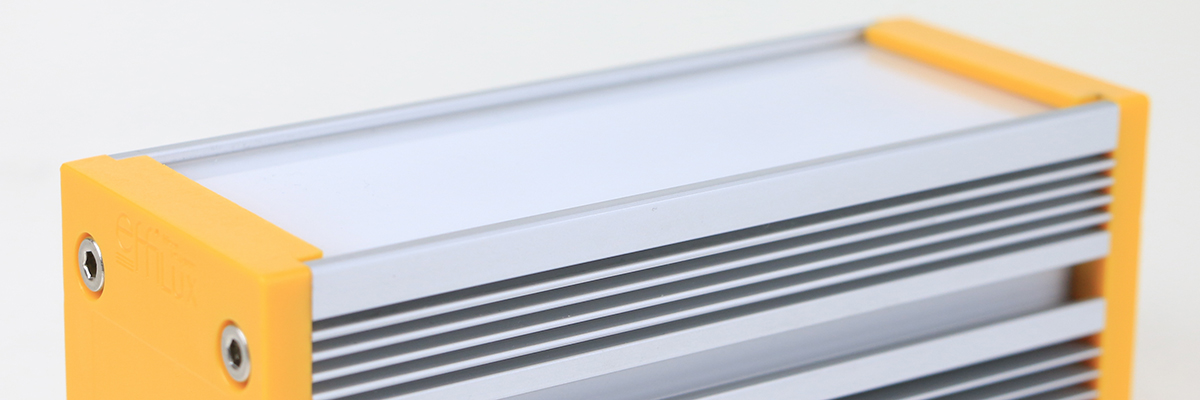

picture ELFB Product

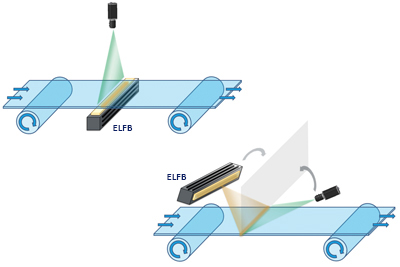

schema how to use the ELFB

The ELFB Series is a line light with high uniformity, ideal for linescan applications where high uniformity is key.

Whether it is used as a front light or back light, the ELFB Series is flexible in its use. As such, it can be used for applications such as paper inspection, but also for or inspection for foreign materials on clear film.

The ELFB Series is designed with an Integrated dimming controller, allowing for easy intensity adjustments.

‣ Optical options

The ELFB Series offer a cylindrical lens as an option, focusing the irradiation and increasing the intensity with a factor of 20.

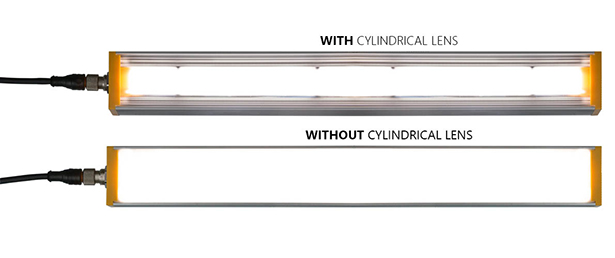

ELFB with Cylindrical lens VS ELFB without Cylindrical lens

With the polarizer for the ELFB Series, it is possible to eliminate glare from your workpiece, making it easier to acquire a suitable image for your application.

ELFB without polarizer ELFB with polarizer
Without polarizer
With polarizer

‣ ELFB : Product Line Up

SERIES
Part Number
Color
Wavelength / Color temperature
MaxPower Consumption
Connector
Weigth
Optical Length (Lop)
CAD
Datasheet
ELFB ELFB-100SW White 5500 K ± 500 K 5W M12 400g 100mm
ELFB ELFB-100BL Blue 465 nm
ELFB ELFB-100GR Green 525 nm
ELFB ELFB-100RD Red 625 nm
ELFB ELFB-100IR Infrared 850 nm
ELFB ELFB-200SW White 5500 K ± 500 K 10W M12 700g 200mm
ELFB ELFB-200BL Blue 465 nm
ELFB ELFB-200GR Green 525 nm
ELFB ELFB-200RD Red 625 nm
ELFB ELFB-200IR Infrared 850 nm
ELFB ELFB-300SW White 5500 K ± 500 K 15W M12 1000g 300mm
ELFB ELFB-300BL Blue 465 nm
ELFB ELFB-300GR Green 525 nm
ELFB ELFB-300RD Red 625 nm
ELFB ELFB-300IR Infrared 850 nm
ELFB ELFB-400SW White 5500 K ± 500 K 20W M12 1300g 400mm
ELFB ELFB-400BL Blue 465 nm
ELFB ELFB-400GR Green 525 nm
ELFB ELFB-400RD Red 625 nm
ELFB ELFB-400IR Infrared 850 nm
ELFB ELFB-500SW White 5500 K ± 500 K 25W M12 1600g 500mm
ELFB ELFB-500BL Blue 465 nm
ELFB ELFB-500GR Green 525 nm
ELFB ELFB-500RD Red 625 nm
ELFB ELFB-500IR Infrared 850 nm
ELFB ELFB-600SW White 5500 K ± 500 K 30W M12 1900g 600mm
ELFB ELFB-600BL Blue 465 nm
ELFB ELFB-600GR Green 525 nm
ELFB ELFB-600RD Red 625 nm
ELFB ELFB-600IR Infrared 850 nm
ELFB ELFB-700SW White 5500 K ± 500 K 35W M12 2200g 700mm
ELFB ELFB-700BL Blue 465 nm
ELFB ELFB-700GR Green 525 nm
ELFB ELFB-700RD Red 625 nm
ELFB ELFB-700IR Infrared 850 nm
ELFB ELFB-800SW White 5500 K ± 500 K 40W M12 2500g 800mm
ELFB ELFB-800BL Blue 465 nm
ELFB ELFB-800GR Green 525 nm
ELFB ELFB-800RD Red 625 nm
ELFB ELFB-800IR Infrared 850 nm
ELFB ELFB-900SW White 5500 K ± 500 K 45W M12 2800g 900mm
ELFB ELFB-900BL Blue 465 nm
ELFB ELFB-900GR Green 525 nm
ELFB ELFB-900RD Red 625 nm
ELFB ELFB-900IR Infrared 850 nm
ELFB ELFB-1000SW White 5500 K ± 500 K 50W M12 3100g 1000mm
ELFB ELFB-1000BL Blue 465 nm
ELFB ELFB-1000GR Green 525 nm
ELFB ELFB-1000RD Red 625 nm
ELFB ELFB-1000IR Infrared 850 nm
ELFB ELFB-1100SW White 5500 K ± 500 K 55W M12 3400g 1100mm
ELFB ELFB-1100BL Blue 465 nm
ELFB ELFB-1100GR Green 525 nm
ELFB ELFB-1100RD Red 625 nm
ELFB ELFB-1100IR Infrared 850 nm
ELFB ELFB-1200SW White 5500 K ± 500 K 60W M12 3400g 1200mm
ELFB ELFB-1200BL Blue 465 nm
ELFB ELFB-1200GR Green 525 nm
ELFB ELFB-1200RD Red 625 nm
ELFB ELFB-1200IR Infrared 850 nm
ELFB ELFB-1300SW White 5500 K ± 500 K 65W M12 4000g 1300mm
ELFB ELFB-1300BL Blue 465 nm
ELFB ELFB-1300GR Green 525 nm
ELFB ELFB-1300RD Red 625 nm
ELFB ELFB-1300IR Infrared 850 nm
ELB ELB-1400SW White 5500 K ± 500 K 70W M12 4300g 1400mm
ELFB ELFB-1400BL Blue 465 nm
ELFB ELFB-1400GR Green 525 nm
ELFB ELFB-1400RD Red 625 nm
ELFB ELFB-1400IR Infrared 850 nm
ELFB ELFB-1500SW White 5500 K ± 500 K 75W M12 4600g 1500mm
ELFB ELFB-1500BL Blue 465 nm
ELFB ELFB-1500GR Green 525 nm
ELFB ELFB-1500RD Red 625 nm
ELFB ELFB-1500IR Infrared 850 nm
ELFB ELFB-1600SW White 5500 K ± 500 K 80W M12P 4900g 1600mm
ELFB ELFB-1600BL Blue 465 nm
ELFB ELFB-1600GR Green 525 nm
ELFB ELFB-1600RD Red 625 nm
ELFB ELFB-1600IR Infrared 850 nm

‣ Optical accessories

Cylindrical Lens

Part Number Applicable LED Unit
CL-ELB-100 ELFB-100
CL-ELFB-200 ELFB-200
CL-ELFB-300 ELFB-300
CL-ELFB-400 ELFB-400
CL-ELFB-500 ELFB-500
CL-ELFB-600 ELFB-600
CL-ELFB-700 ELFB-700
CL-ELFB-800 ELFB-800
CL-ELFB-900 ELFB-900
CL-ELFB-1000 ELFB-1000
CL-ELFB-1100 ELFB-1100
CL-ELFB-1200 ELFB-1200
CL-ELFB-1300 ELFB-1300
CL-ELFB-1400 ELFB-1400
CL-ELFB-1500 ELFB-1500
CL-ELFB-1600 ELFB-1600

Polarizer

Part Number Applicable LED Unit
PL-ELB-100 ELFB-100
PL-ELB-200 ELFB-200
PL-ELB-300 ELFB-300
PL-ELB-400 ELFB-400
PL-ELB-500 ELFB-500
PL-ELB-600 ELFB-600
PL-ELB-700 ELFB-700
PL-ELB-800 ELFB-800
PL-ELB-900 ELFB-900
PL-ELB-1000 ELFB-1000
PL-ELB-1100 ELFB-1100
PL-ELB-1200 ELFB-1200
PL-ELB-1300 ELFB-1300
PL-ELB-1400 ELFB-1400
PL-ELB-1500 ELFB-1500
PL-ELB-1600 ELFB-1600

‣ Custom - On request


Options available on request

IP67 & IP69K versions

Water cooling

Example of custom

Other positions of connectors

Custom Electronic
