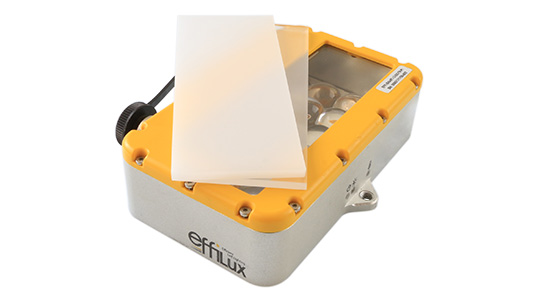

ELSB Series

EL Series logo

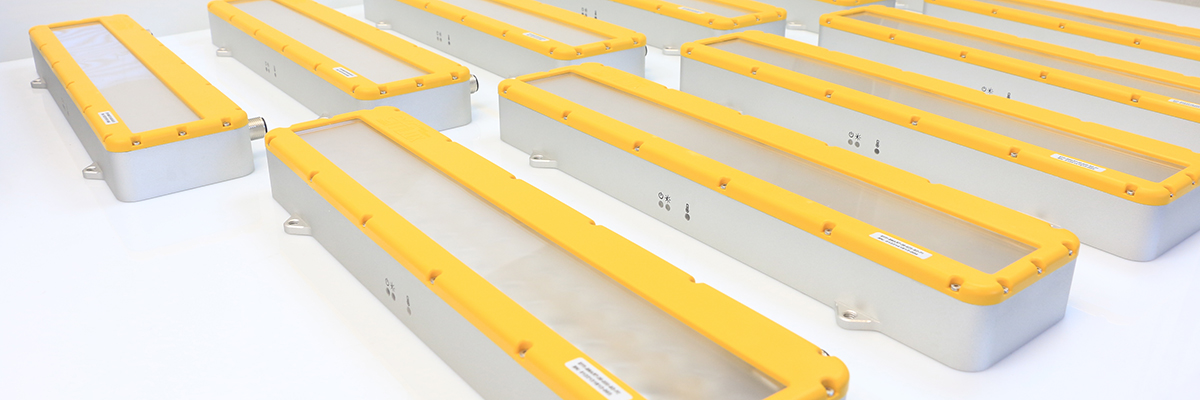

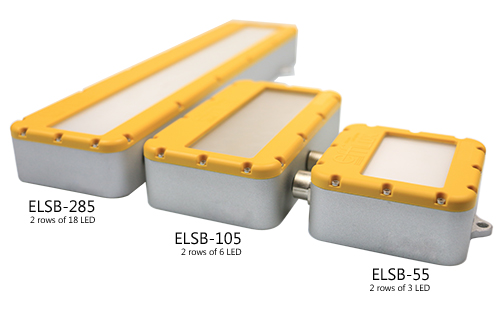

differents ELB

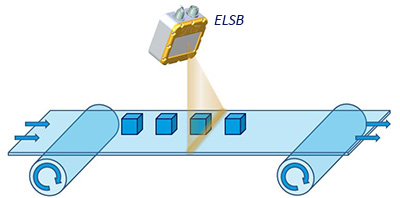

schema how to use the ELSB

The ELSB Series has a double row of high-powered LEDs, to answer increased line speeds in Machine Vision Applications.

Like the ELB Series, the ELSB is highly flexible and allows for easy adjustment of the lens positioning and diffuser plates. The ELSB Series has an IP67 rating to cope with hasher working environments, where dust and water are constant factor.

The integrated controller of the ELSB Series allows for flexibility to the user. With this integrated controller, the user can dim the ELSB Series to the requirement illumination level. The user can also make use of the strobe functionality, increasing the intensity with 700%.

‣ Window

Depending on what uniformity is needed for the application, the user can select and easily change to the diffuser that fulfills the application requirements.

CW : Clear window
SD : Semi-diffuse window
DF : Diffuse window

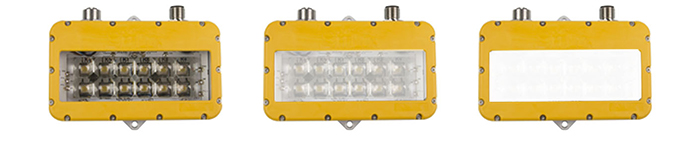

3 differentes ELSB glasses

‣ Lens Position

The ELSB Series offers flexibility in its lens positioning, which can be easily adjusted to depending on the irradiation distance. The lens positioning can be configured by adjusting the two spacers and the lens array inside the ELSB Series.

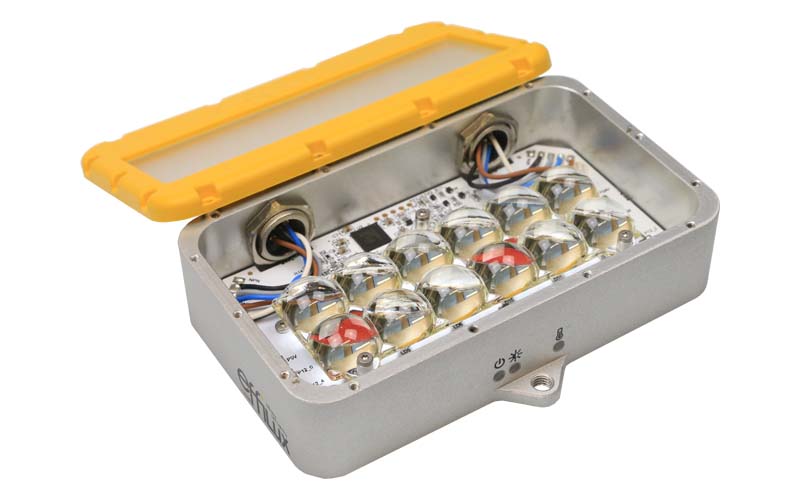

ELSB lens
Position P0 ( Without lens) P1 P2 P3
Angle

‣ Optical options

With the polarizer for the ELB Series, it is possible to eliminate glare from your workpiece, making it easier to acquire a suitable image for your application.

ELSB with Polarizer

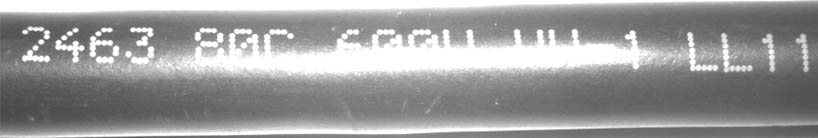

Without polarizer

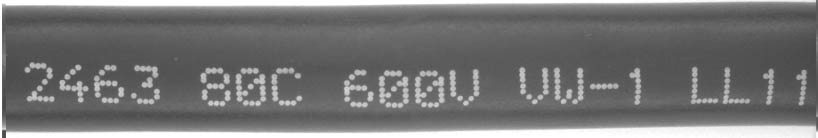

With polarizer

‣ ELSB : Product Line Up

ELSB-55

SERIES
Part Number
Color
Wavelength / Color temperature
Max Power Consumption
Diffuser
Lens Position
Connectors
Weight
CAD
Datasheet
ELSB ELSB-55SW-CW-P0 White 5500 K ± 500 K 15W Clear Window P0 (without lens) 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-CW-P0 Ultraviolet 405 nm
ELSB ELSB-55BL-CW-P0 Blue 465 nm
ELSB ELSB-55GR-CW-P0 Green 525 nm
ELSB ELSB-55RD-CW-P0 Red 625 nm
ELSB ELSB-55IR-CW-P0 Infrared 850 nm
ELSB ELSB-55SW-CW-P1 White 5500 K ± 500 K 15W Clear Window P1 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-CW-P1 Ultraviolet 405 nm
ELSB ELSB-55BL-CW-P1 Blue 465 nm
ELSB ELSB-55GR-CW-P1 Green 525 nm
ELSB ELSB-55RD-CW-P1 Red 625 nm
ELB ELSB-55IR-CW-P1 Infrared 850 nm
ELSB ELSB-55SW-CW-P2 White 5500 K ± 500 K 15W Clear Window P2 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-CW-P2 Ultraviolet 405 nm
ELSB ELSB-55BL-CW-P2 Blue 465 nm
ELSB ELSB-55GR-CW-P2 Green 525 nm
ELSB ELSB-55RD-CW-P2 Red 625 nm
ELSB ELSB-55IR-CW-P2 Infrared 850 nm
ELSB ELSB-55SW-CW-P3 White 5500 K ± 500 K 15W Clear Window P3 2 x M12-5 (M&F) 180g
ELSB ELSB-55UL-CW-P3 Ultraviolet 405 nm
ELSB ELSB-55BL-CW-P3 Blue 465 nm
ELSB ELSB-55GR-CW-P3 Green 525 nm
ELSB ELSB-55RD-CW-P3 Red 625 nm
ELSB ELSB-55IR-CW-P3 Infrared 850 nm
ELSB ELSB-55SW-SD-P0 White 5500 K ± 500 K 15W Semi-diffuse Window P0 (without lens) 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-SD-P0 Ultraviolet 405 nm
ELSB ELSB-55BL-SD-P0 Blue 465 nm
ELSB ELSB-55GR-SD-P0 Green 525 nm
ELSB ELSB-55RD-SD-P0 Red 625 nm
ELSB ELSB-55IR-SD-P0 Infrared 850 nm
ELSB ELSB-55SW-SD-P1 White 5500 K ± 500 K 15W Semi-diffuse Window P1 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-SD-P1 Ultraviolet 405 nm
ELSB ELSB-55BL-SD-P1 Blue 465 nm
ELSB ELSB-55GR-SD-P1 Green 525 nm
ELSB ELSB-55RD-SD-P1 Red 625 nm
ELSB ELSB-55IR-SD-P1 Infrared 850 nm
ELSB ELSB-55SW-SD-P2 White 5500 K ± 500 K 15W Semi-diffuse Window P2 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-SD-P2 Ultraviolet 405 nm
ELSB ELSB-55BL-SD-P2 Blue 465 nm
ELSB ELSB-55GR-SD-P2 Green 525 nm
ELSB ELSB-55RD-SD-P2 Red 625 nm
ELSB ELSB-55IR-SD-P2 Infrared 850 nm
ELSB ELSB-55SW-SD-P3 White 5500 K ± 500 K 15W Semi-diffuse Window P3 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-SD-P3 Ultraviolet 405 nm
ELSB ELSB-55BL-SD-P3 Blue 465 nm
ELSB ELSB-55GR-SD-P3 Green 525 nm
ELSB ELSB-55RD-SD-P3 Red 625 nm
ELSB ELSB-55IR-SD-P3 Infrared 850 nm
ELSB ELSB-55SW-DF-P0 White 5500 K ± 500 K 15W Diffuse Window P0 (without lens) 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-DF-P0 Ultraviolet 405 nm
ELSB ELSB-55BL-DF-P0 Blue 465 nm
ELSB ELSB-55GR-DF-P0 Green 525 nm
ELSB ELSB-55RD-DF-P0 Red 625 nm
ELSB ELSB-55IR-DF-P0 Infrared 850 nm
ELSB ELSB-55SW-DF-P1 White 5500 K ± 500 K 15W Diffuse Window P1 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-DF-P1 Ultraviolet 405 nm
ELSB ELSB-55BL-DF-P1 Blue 465 nm
ELSB ELSB-55GR-DF-P1 Green 525 nm
ELSB ELSB-55RD-DF-P1 Red 625 nm
ELSB ELSB-55IR-DF-P1 Infrared 850 nm
ELSB ELSB-55SW-DF-P2 White 5500 K ± 500 K 15W Diffuse Window P2 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-DF-P2 Ultraviolet 405 nm
ELSB ELSB-55BL-DF-P2 Blue 465 nm
ELSB ELSB-55GR-DF-P2 Green 525 nm
ELSB ELSB-55RD-DF-P2 Red 625 nm
ELSB ELSB-55IR-DF-P2 Infrared 850 nm
ELSB ELSB-55SW-DF-P3 White 5500 K ± 500 K 15W Diffuse Window P3 2 x M12-5 (M&F) 180g
ELSB ELSB-55UV-DF-P3 Ultraviolet 405 nm
ELSB ELSB-55BL-DF-P3 Blue 465 nm
ELSB ELSB-55GR-DF-P3 Green 525 nm
ELSB ELSB-55RD-DF-P3 Red 625 nm
ELSB ELSB-55IR-DF-P3 Infrared 850 nm

ELSB-105

SERIES
Part Number
Color
Wavelength / Color temperature
Max Power Consumption
Diffuser
Lens Position
Connectors
Weight
CAD
Datasheet
ELSB ELSB-105SW-CW-P0 White 5500 K ± 500 K 30W Clear Window P0 (without lens) 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-CW-P0 Ultraviolet 405 nm
ELSB ELSB-105BL-CW-P0 Blue 465 nm
ELSB ELSB-105GR-CW-P0 Green 525 nm
ELSB ELSB-105RD-CW-P0 Red 625 nm
ELSB ELSB-105IR-CW-P0 Infrared 850 nm
ELSB ELSB-105SW-CW-P1 White 5500 K ± 500 K 30W Clear Window P1 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-CW-P1 Ultraviolet 405 nm
ELSB ELSB-105BL-CW-P1 Blue 465 nm
ELSB ELSB-105GR-CW-P1 Green 525 nm
ELSB ELSB-105RD-CW-P1 Red 625 nm
ELB ELSB-105IR-CW-P1 Infrared 850 nm
ELSB ELSB-105SW-CW-P2 White 5500 K ± 500 K 30W Clear Window P2 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-CW-P2 Ultraviolet 405 nm
ELSB ELSB-105BL-CW-P2 Blue 465 nm
ELSB ELSB-105GR-CW-P2 Green 525 nm
ELSB ELSB-105RD-CW-P2 Red 625 nm
ELSB ELSB-105IR-CW-P2 Infrared 850 nm
ELSB ELSB-105SW-CW-P3 White 5500 K ± 500 K 30W Clear Window P3 2 x M12-5 (M&F) 300g
ELSB ELSB-105UL-CW-P3 Ultraviolet 405 nm
ELSB ELSB-105BL-CW-P3 Blue 465 nm
ELSB ELSB-105GR-CW-P3 Green 525 nm
ELSB ELSB-105RD-CW-P3 Red 625 nm
ELSB ELSB-105IR-CW-P3 Infrared 850 nm
ELSB ELSB-105SW-SD-P0 White 5500 K ± 500 K 30W Semi-diffuse Window P0 (without lens) 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-SD-P0 Ultraviolet 405 nm
ELSB ELSB-105BL-SD-P0 Blue 465 nm
ELSB ELSB-105GR-SD-P0 Green 525 nm
ELSB ELSB-105RD-SD-P0 Red 625 nm
ELSB ELSB-105IR-SD-P0 Infrared 850 nm
ELSB ELSB-105SW-SD-P1 White 5500 K ± 500 K 30W Semi-diffuse Window P1 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-SD-P1 Ultraviolet 405 nm
ELSB ELSB-105BL-SD-P1 Blue 465 nm
ELSB ELSB-105GR-SD-P1 Green 525 nm
ELSB ELSB-105RD-SD-P1 Red 625 nm
ELSB ELSB-105IR-SD-P1 Infrared 850 nm
ELSB ELSB-105SW-SD-P2 White 5500 K ± 500 K 30W Semi-diffuse Window P2 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-SD-P2 Ultraviolet 405 nm
ELSB ELSB-105BL-SD-P2 Blue 465 nm
ELSB ELSB-105GR-SD-P2 Green 525 nm
ELSB ELSB-105RD-SD-P2 Red 625 nm
ELSB ELSB-105IR-SD-P2 Infrared 850 nm
ELSB ELSB-105SW-SD-P3 White 5500 K ± 500 K 30W Semi-diffuse Window P3 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-SD-P3 Ultraviolet 405 nm
ELSB ELSB-105BL-SD-P3 Blue 465 nm
ELSB ELSB-105GR-SD-P3 Green 525 nm
ELSB ELSB-105RD-SD-P3 Red 625 nm
ELSB ELSB-105IR-SD-P3 Infrared 850 nm
ELSB ELSB-105SW-DF-P0 White 5500 K ± 500 K 30W Diffuse Window P0 (without lens) 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-DF-P0 Ultraviolet 405 nm
ELSB ELSB-105BL-DF-P0 Blue 465 nm
ELSB ELSB-105GR-DF-P0 Green 525 nm
ELSB ELSB-105RD-DF-P0 Red 625 nm
ELSB ELSB-105IR-DF-P0 Infrared 850 nm
ELSB ELSB-105SW-DF-P1 White 5500 K ± 500 K 30W Diffuse Window P1 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-DF-P1 Ultraviolet 405 nm
ELSB ELSB-105BL-DF-P1 Blue 465 nm
ELSB ELSB-105GR-DF-P1 Green 525 nm
ELSB ELSB-105RD-DF-P1 Red 625 nm
ELSB ELSB-105IR-DF-P1 Infrared 850 nm
ELSB ELSB-105SW-DF-P2 White 5500 K ± 500 K 30W Diffuse Window P2 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-DF-P2 Ultraviolet 405 nm
ELSB ELSB-105BL-DF-P2 Blue 465 nm
ELSB ELSB-105GR-DF-P2 Green 525 nm
ELSB ELSB-105RD-DF-P2 Red 625 nm
ELSB ELSB-105IR-DF-P2 Infrared 850 nm
ELSB ELSB-105SW-DF-P3 White 5500 K ± 500 K 30W Diffuse Window P3 2 x M12-5 (M&F) 300g
ELSB ELSB-105UV-DF-P3 Ultraviolet 405 nm
ELSB ELSB-105BL-DF-P3 Blue 465 nm
ELSB ELSB-105GR-DF-P3 Green 525 nm
ELSB ELSB-105RD-DF-P3 Red 625 nm
ELSB ELSB-105IR-DF-P3 Infrared 850 nm

ELSB-285

SERIES
Part Number
Color
Wavelength / Color temperature
Max Power Consumption
Diffuser
Lens Position
Connectors
Weight
CAD
Datasheet
ELSB ELSB-285SW-CW-P0 White 5500 K ± 500 K 80W Clear Window P0 (without lens) 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-CW-P0 Ultraviolet 405 nm
ELSB ELSB-285BL-CW-P0 Blue 465 nm
ELSB ELSB-285GR-CW-P0 Green 525 nm
ELSB ELSB-285RD-CW-P0 Red 625 nm
ELSB ELSB-285IR-CW-P0 Infrared 850 nm
ELSB ELSB-285SW-CW-P1 White 5500 K ± 500 K 80W Clear Window P1 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-CW-P1 Ultraviolet 405 nm
ELSB ELSB-285BL-CW-P1 Blue 465 nm
ELSB ELSB-285GR-CW-P1 Green 525 nm
ELSB ELSB-285RD-CW-P1 Red 625 nm
ELB ELSB-285IR-CW-P1 Infrared 850 nm
ELSB ELSB-285SW-CW-P2 White 5500 K ± 500 K 80W Clear Window P2 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-CW-P2 Ultraviolet 405 nm
ELSB ELSB-285BL-CW-P2 Blue 465 nm
ELSB ELSB-285GR-CW-P2 Green 525 nm
ELSB ELSB-285RD-CW-P2 Red 625 nm
ELSB ELSB-285IR-CW-P2 Infrared 850 nm
ELSB ELSB-285SW-CW-P3 White 5500 K ± 500 K 80W Clear Window P3 2 x M12-5 (M&F) 800g
ELSB ELSB-205UL-CW-P3 Ultraviolet 405 nm
ELSB ELSB-285BL-CW-P3 Blue 465 nm
ELSB ELSB-285GR-CW-P3 Green 525 nm
ELSB ELSB-285RD-CW-P3 Red 625 nm
ELSB ELSB-285IR-CW-P3 Infrared 850 nm
ELSB ELSB-285SW-SD-P0 White 5500 K ± 500 K 80W Semi-diffuse Window P0 (without lens) 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-SD-P0 Ultraviolet 405 nm
ELSB ELSB-285BL-SD-P0 Blue 465 nm
ELSB ELSB-285GR-SD-P0 Green 525 nm
ELSB ELSB-285RD-SD-P0 Red 625 nm
ELSB ELSB-285IR-SD-P0 Infrared 850 nm
ELSB ELSB-285SW-SD-P1 White 5500 K ± 500 K 80W Semi-diffuse Window P1 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-SD-P1 Ultraviolet 405 nm
ELSB ELSB-285BL-SD-P1 Blue 465 nm
ELSB ELSB-285GR-SD-P1 Green 525 nm
ELSB ELSB-285RD-SD-P1 Red 625 nm
ELSB ELSB-285IR-SD-P1 Infrared 850 nm
ELSB ELSB-285SW-SD-P2 White 5500 K ± 500 K 80W Semi-diffuse Window P2 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-SD-P2 Ultraviolet 405 nm
ELSB ELSB-285BL-SD-P2 Blue 465 nm
ELSB ELSB-285GR-SD-P2 Green 525 nm
ELSB ELSB-285RD-SD-P2 Red 625 nm
ELSB ELSB-285IR-SD-P2 Infrared 850 nm
ELSB ELSB-285SW-SD-P3 White 5500 K ± 500 K 80W Semi-diffuse Window P3 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-SD-P3 Ultraviolet 405 nm
ELSB ELSB-285BL-SD-P3 Blue 465 nm
ELSB ELSB-285GR-SD-P3 Green 525 nm
ELSB ELSB-285RD-SD-P3 Red 625 nm
ELSB ELSB-285IR-SD-P3 Infrared 850 nm
ELSB ELSB-285SW-DF-P0 White 5500 K ± 500 K 80W Diffuse Window P0 (without lens) 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-DF-P0 Ultraviolet 405 nm
ELSB ELSB-285BL-DF-P0 Blue 465 nm
ELSB ELSB-285GR-DF-P0 Green 525 nm
ELSB ELSB-285RD-DF-P0 Red 625 nm
ELSB ELSB-285IR-DF-P0 Infrared 850 nm
ELSB ELSB-285SW-DF-P1 White 5500 K ± 500 K 80W Diffuse Window P1 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-DF-P1 Ultraviolet 405 nm
ELSB ELSB-285BL-DF-P1 Blue 465 nm
ELSB ELSB-285GR-DF-P1 Green 525 nm
ELSB ELSB-285RD-DF-P1 Red 625 nm
ELSB ELSB-285IR-DF-P1 Infrared 850 nm
ELSB ELSB-285SW-DF-P2 White 5500 K ± 500 K 80W Diffuse Window P2 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-DF-P2 Ultraviolet 405 nm
ELSB ELSB-285BL-DF-P2 Blue 465 nm
ELSB ELSB-285GR-DF-P2 Green 525 nm
ELSB ELSB-285RD-DF-P2 Red 625 nm
ELSB ELSB-285IR-DF-P2 Infrared 850 nm
ELSB ELSB-285SW-DF-P3 White 5500 K ± 500 K 80W Diffuse Window P3 2 x M12-5 (M&F) 800g
ELSB ELSB-285UV-DF-P3 Ultraviolet 405 nm
ELSB ELSB-285BL-DF-P3 Blue 465 nm
ELSB ELSB-285GR-DF-P3 Green 525 nm
ELSB ELSB-285RD-DF-P3 Red 625 nm
ELSB ELSB-285IR-DF-P3 Infrared 850 nm

‣ Optical accessories

Polarizer

Part Number Applicable LED Unit
PL-ELSB-55 ELSB-55
PL-ELSB-105 ELSB-105
PL-ELSB-285 ELSB-285


For cables cf. the datasheet of the ECB cables series.
For fasteners cf. the datasheet of the BK fasteners series.


‣ Custom - On request


Options available on request

IP69K version
