ELF Series

EL Series logo

ELF product

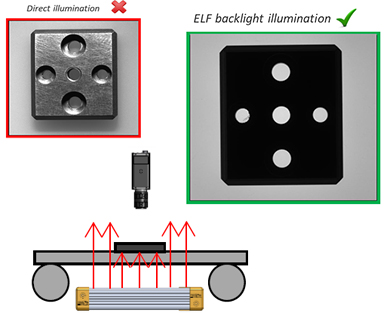

schema how to use the ELF

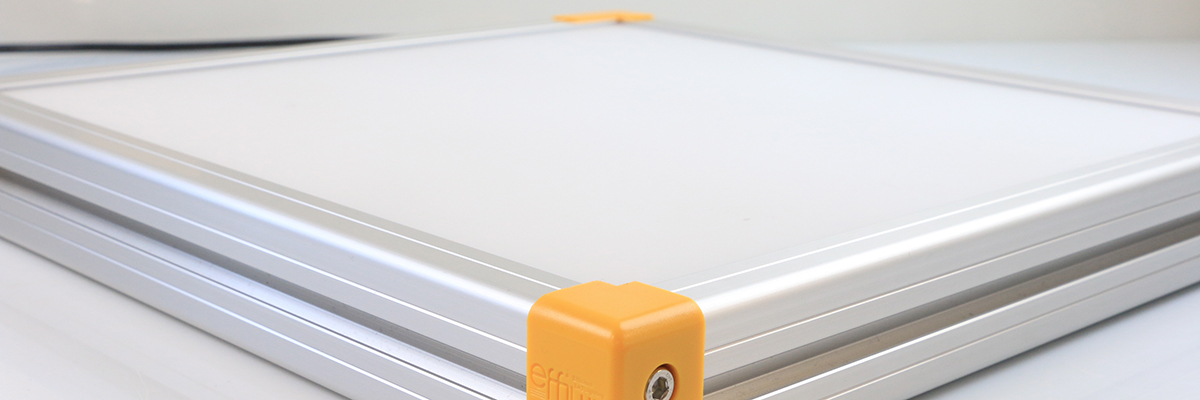

The ELF Series offers large area backlights with high uniformity and is designed with high powered LED.

It offers a homogeneity of more than 90% on the emitting surface, making it ideal for applications where uniform and diffused illumination is key. This gives the user the ability to accurately see shapes of work pieces in their application.

The ELF Series is designed with an integrated controller, offering intensity control to the user.

‣ ELF : Product Line Up

SERIES
Part Number
Color
Wavelength / Color temperature
Max Power Consumption
Connector
Weigth
Optical Width
Optical Length
CAD
Datasheet
ELF ELF-200x200SW White 5500 K ± 500 K 30W M12 1 900g 200 mm 200 mm
ELF ELF-200x200RD Red 625 nm
ELF ELF-200x200IR Infrared 850 nm
ELF ELF-300x300SW White 5500 K ± 500 K 65w M12 3 500 g 300 mm 300 mm
ELF ELF-300x300RD Red 625 nm
ELF ELF-300x300IR Infrared 850 nm
ELF ELF-400x400SW White 5500 K ± 500 K 110W M12P 5 000g 400 mm 400 mm
ELF ELF-400x400RD Red 625 nm
ELF ELF-400x400IR Infrared 850 nm
ELF ELF-500x500SW White 5500 K ± 500 K 175W M12P 7 900g 500 mm 500 mm
ELF ELF-500x500RD Red 625 nm
ELF ELF-500x500IR Infrared 850 nm
ELF ELF-600x600SW White 5500 K ± 500 K 250W M12P 12 800g 600 mm 600 mm
ELF ELF-600x600RD Red 625 nm
ELF ELF-600x600IR Infrared 850 nm

‣ Custom - On request


Options available on request

Other sizes

Other wavelengths

IP69K version

Thin edges

Example of custom

Custom Electronic
