Lighting fasteners

EL Series logo


SERIES
Fastener
Part Number
Characteristics
Compatibility

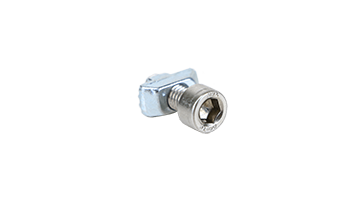

BK T-Nut BK-EL-BOLT-M6 This kit contains 1 T-NUT M6 nut, 1 M6X14 screw, 1 M6 washer, 1 M4X12 screw, 1 M4 washer and 1 M4 nut. ELF, ELF-C, ELB
BK-EL-BOLT-M4 This kit contains 1 T-NUT M4 nut, 1 M4x8 screw and 1 M4x12 screw and 1 M4 washer.

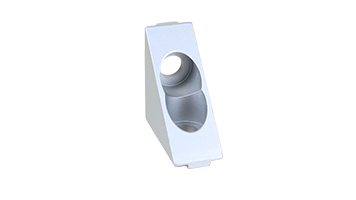

BK Bracket BK-EL This fastener is attached in the product profile with a T-Nut and the desired mechanical support via a second T-Nut.
Delivered with 2 M6x14 screws, 2 M6 T-NUT nuts and t2 M6 washers
ELF, ELF-C, ELB
BK-EL-GRV
BK-EL-GRV-2

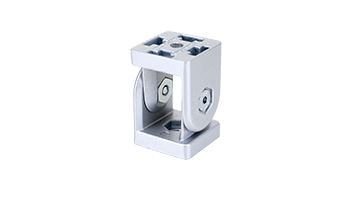

BK “Elcom” Ball BK-EL-BALL-DL Delivered with 2 M4x10 screws, 1 M6x14 screw, 2 M5x10 screws and 1 T-NUT M6 nut. ELL
BK-EL-BALL-NDL Supplied with 2 T-NUT M6 nuts, 1 M4 T-NUT nut, 1 M6x14 screw, 1 M6x10 screw, 1 M4x10 screw, 1 M5X8 screw, and 1 M5x10 screw. ELF, ELF-C, ELB, ELSB, ELL-CP

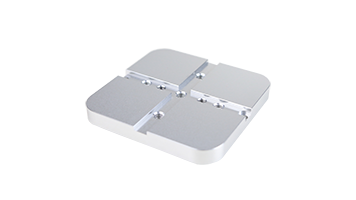

BK ELSB Adapter AD-ELSB Adapter for fastening your ELSB. Delivered with 2 M3x8 screws. To securely lock the product, Please remove the inner washers. ELSB
