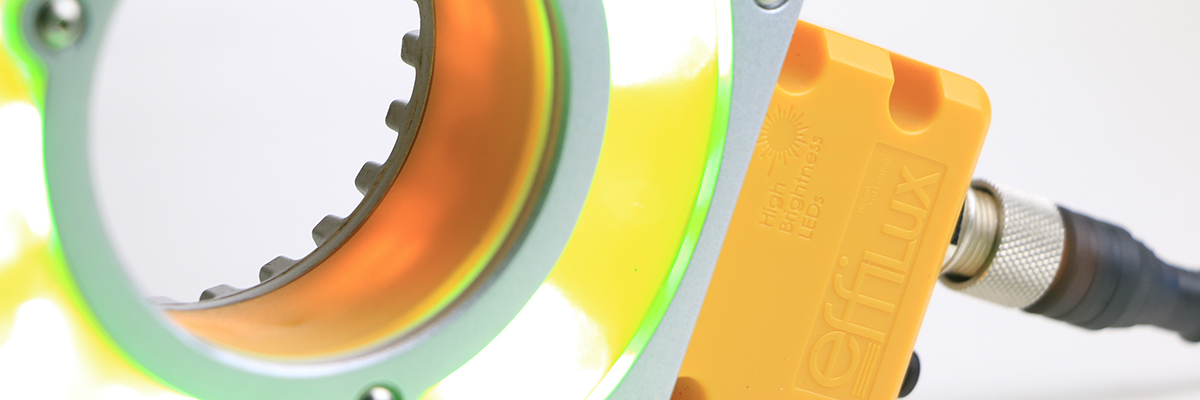

ELR Series

EL Series logo

picture ELR product

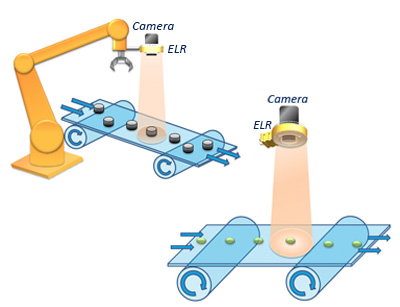

schema how to use the ELR

The ELR Series is highly flexible power ring light and comes in an IP65 rating as standard.

Users can easily adjust the lens position to meet any application requirements. The ELR Series is also shipped with three different diffuser plates, so that the uniformity can be adjusted to the needs of the user.

With its autostrobe integrated controller of the ELR Series allows for 700% increase intensity while being strobe when compared to continues mode.

The extra M8 connector allows for direct current control for expert use.

‣ Window

The ELR Series is shipped with three different diffusers. Depending on what uniformity is needed for the application, the user can select and easily change to the diffuser that fulfills the application requirements.

CW : Clear window
SD : Semi-diffuse window
DF : Diffuse window

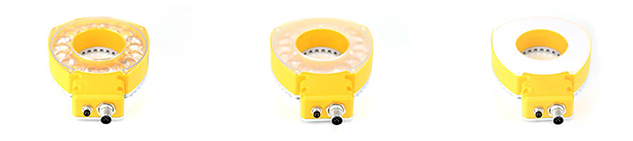

differentes ELR glasses

‣ Lens Position

The ELR Series offers flexibility in its lens positioning, which can be easily adjusted to depending on the irradiation distance.

schema ELR lens
Position P0 ( Without lens) P1 P2 P3
Angle

‣ Optical options

With the polarizer for the ELR Series, it is possible to eliminate glare from your workpiece, making it easier to acquire a suitable image for your application.

Without polarizer ELR With polarizer ELR
Without polariseur
With polariseur


‣ ELR : Product Line Up

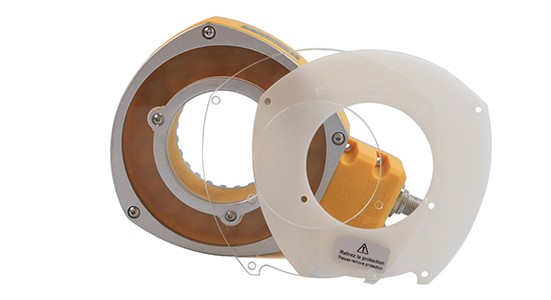

The ELR Series is standard delivered as a package: the product in the classic configuration (SD diffuser and the lens at P2 position) and the two other diffusers (DF and CW), allowing the users to select the correct diffuser for their application needs:

ELR Package (ELR+3 glasses)

ELR : Standard version

SERIES
Part Number
Color
Wavelength / Color temperature
Power Consumption
Connector
Weigth
CAD
Datasheet
Strobe
Continuous
ELR ELR-100SW White 5500 K ± 500 K 72 15 M12 & M8 400 g
ELR ELR-100UV Ultraviolet 405 nm
ELR ELR-100BL Blue 465 nm
ELR ELR-100GR Green 525 nm
ELR ELR-100RD Red 625 nm
ELR ELR-100IR Infrared 850 nm

‣ Optical accessories

Polarizer

Part Number Applicable LED Unit
PL-ELR-100 ELR-100


For cables cf. the datasheet of the ECB cables series.
For fasteners and camera supports cf. the datasheet of the BK fasteners series.


‣ Custom - On request


Options available on request

Other wavelengths, ...

Tricolor versions : RGB & WUI
